QWATV-08F(Hits:46)
QWATV-08F-

  Item No.:

  • QWATV-08F-
  • QWATV-08F-
  • QWATV-08F-
  • QWATV-08F-
  • QWATV-08F-
  • QWATV-08F-
Description
Features
Parameters

Model

QWATV-08F SPORTS 250

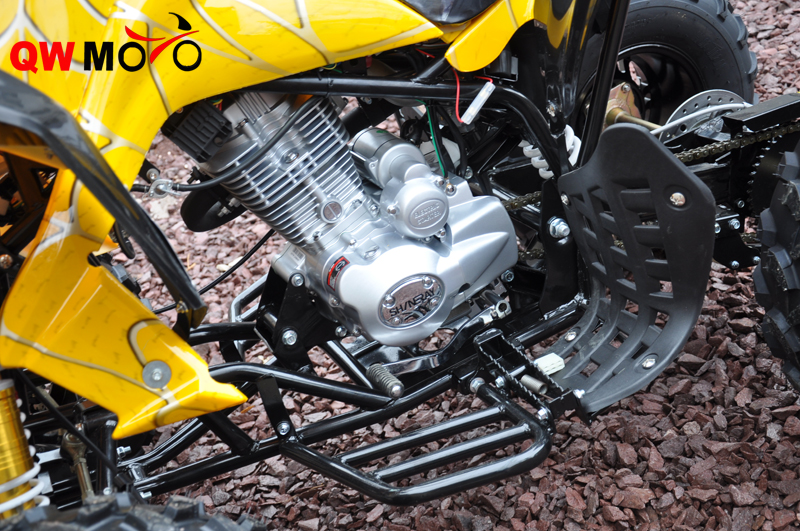

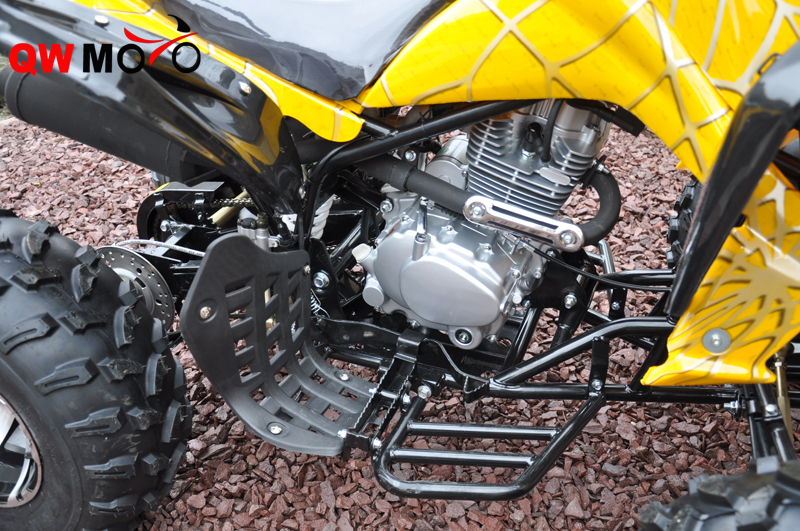

Engine

250CC Air-cooled SHINERAY 4 Stroke, Single Cylinder

Starting Method

Electric Start

Ignition Mode

CDI

Fuel Tank Capacity

4.0L (METAL TANK + CAP)

Fuel

Straight Unleaded Petrol

Transmission

4 FORWARD GEARS & REVERSE

Drive System

Chain

Throttle Control

Thumb throttle (screw restrictable to limit max throttle)

Suspension

Front : Dual A arm spring shocks
Rear : Large rear shock

Maximum Speed

80km/hr+ (Depends upon road conditions & rider weight)

Front Brakes

DRUM BRAKES

Rear Brakes

Drilled Disc HYDRAULIC BRAKE

Maximum Load

150kg

Wheel Size

Front : AT 19 x 7 - 8
Rear : AT 18 x 9.5 - 8

Rider Capacity

1 person

Dimensions (L x W x H)

BOX : 1470 x 840 x 800 (mm)
BIKE: 1850 x 1070 x 1040 (mm)
Seat Height : 750mm

Weight

Gross: 155kg
Net: 135kg

Container Loading

22 PCS (20GP); 63 PCS(40HQ)
