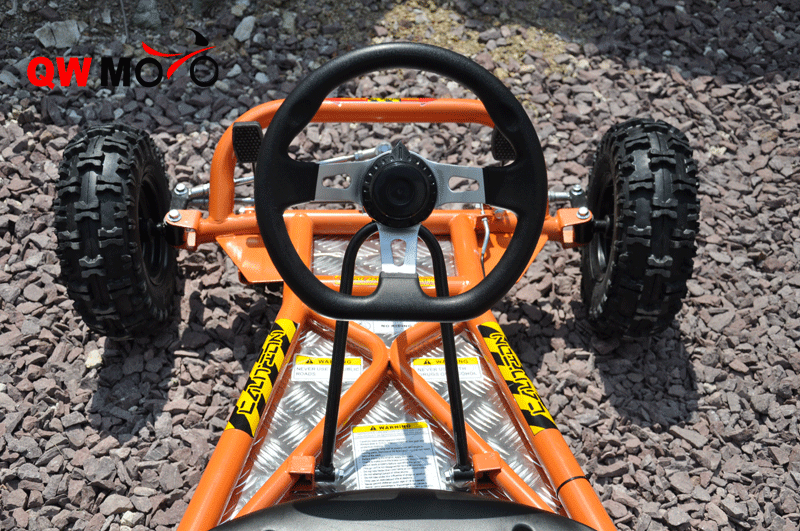

QWATV-05 196CC GO KART Foot Throttle(Hits:273)
QWATV-05 196CC GO KART Foot Throttle-QWATV-05

  Item No.:QWATV-05

  • QWATV-05 196CC GO KART Foot Throttle-QWATV-05
  • QWATV-05 196CC GO KART Foot Throttle-QWATV-05
  • QWATV-05 196CC GO KART Foot Throttle-QWATV-05
  • QWATV-05 196CC GO KART Foot Throttle-QWATV-05
Description
Features
Parameters

196CC GO KART FOOT THROTTLE

Model:

QWATV-05  196CC GO KART

Engine:

196cc, Air cooled, 4 stroke

Fuel Tank:

3.6 L

Starting system:

manual/pull start

Power transmission:

chain drive

Max power:

10.0kW/7,500rpm

Torque:

13.5N.m/6,500rpm

Brakes:

rear disc brakes

Wheel Side:

front: 13X5-6, rear: 13X5-6

Minimum ground clearance:

105mm

Max loading:

100kg/220lbs

Max speed:

>50km/h

Climbing ability:

<20 degrees

Wheelbase:

1160mm

Seat height:

250mm

Outer dimensions:

1800X980X760mm

Carton size:

1260 x 960 x 510mm

G.W/N.W:

85/75kgs

Container Loading:

48PCS(20GP)  120PCS(40HQ)
